百利通亞陶科技成立于2000年，為信息與通訊產業關鍵的石英晶振，貼片晶振，有源晶振，32.768k晶振，石英晶體振蕩器，溫補晶振等產品等元器件制造業者。2001年獲經濟部核發「新興重要策略性產業」核準函，為政府重點扶植之高科技產業；本公司為國內第一家通過ISO9001國際質量認證之專業石英晶體振蕩器生產廠商。

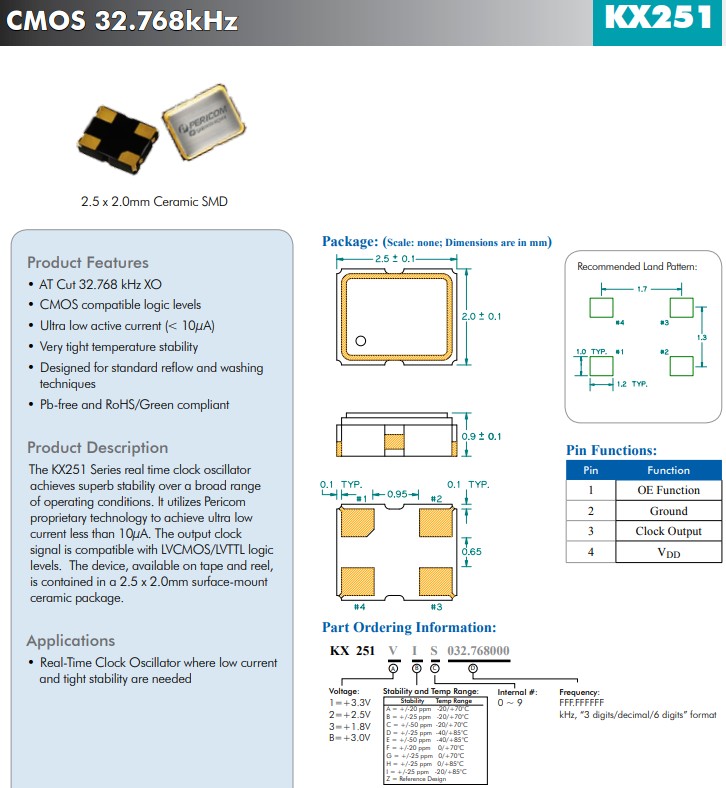

百利通亞陶晶振KX251系列，編碼KX2513G0032.768000，是一款實時時鐘晶體振蕩器，在廣泛的工作條件下實現了卓越的穩定性，電源電壓1.8V/2.5V/3.3V，頻率：32.768kHz，CMOS晶體振蕩器，它利用 Pericom專有技術實現小于10μA的超低電流。輸出時鐘信號與 LVCMOS/LVTTL邏輯電平兼容。該器件采用卷帶包裝，小體積晶振尺寸采用2.5x2.0mm表面貼裝陶瓷封裝。
百利通亞陶晶振KX251系列時鐘晶體振蕩器非常適用于鐘表電子,KX2513G0032.768000,32.768k晶振

Manufacturer Part Number原廠代碼	Manufacturer品牌	Series型號	Frequency 頻率	Frequency Stability頻率穩定度	Operating Temperature 工作溫度
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270037	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX2513G0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	0°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX3211D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2013B0032.768000	Diodes晶振	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2013D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KX2511A0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±20ppm	-20°C ~ 70°C
KX2513D0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270008	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270046	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270031	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270045	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270049	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±50ppm	-40°C ~ 85°C

百利通亞陶晶振KX251系列時鐘晶體振蕩器非常適用于鐘表電子,KX2513G0032.768000,32.768k晶振
特征：

AT Cut 32.768k晶體振蕩器

CMOS兼容邏輯電平

超低有功電流（< 10μA）

非常嚴格的溫度穩定性

專為標準回流和清洗技術而設計

無鉛且符合 RoHS/Green 標準

應用：需要低電流和高度穩定性的實時時鐘振蕩器

輸出邏輯	CMOS
電源電壓 (V)	1.8,2.5,3.3
包裝尺寸（毫米）	2.5x2.0x0.9
包裝類型	陶瓷縫
穩定性 (PPM)	20到50
產品系列	KX251
頻率范圍 (MHz)	32.768KHZ
抖動均方根 (ps)	<1 PS
墊	4
家庭	千赫XO

KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270052	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KK3270051	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-40°C ~ 85°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX2132709Z	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KJ3270004Z	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270040	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±25ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270046Z	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KK3270050	Diodes Crystal	SaRonix-eCera™ KK	32.768kHz	±25ppm	-20°C ~ 70°C
KM3270004	Diodes Crystal	SaRonix-eCera™ KM	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KJ3270001	Diodes Crystal	SaRonix-eCera™ KJ	32.768kHz	±25ppm	-40°C ~ 85°C
KN3270028	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270032	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270031	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270042	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270022	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-20°C ~ 70°C
KD3270036	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-20°C ~ 70°C
KN3270032	Diodes Crystal	SaRonix-eCera™ KN	32.768k	±50ppm	-40°C ~ 85°C
KN3270033	Diodes Crystal	SaRonix-eCera™ KN	32.768kHz	±50ppm	-40°C ~ 85°C
KD3270034	Diodes Crystal	SaRonix-eCera™ KD	32.768kHz	±50ppm	-40°C ~ 85°C
KX3211B0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±25ppm	-20°C ~ 70°C
KX3211C0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±50ppm	-20°C ~ 70°C
KX3211E0032.768000	Diodes Crystal	SaRonix-eCera™ KX	32.768kHz	±50ppm	-40°C ~ 85°C

百利通亞陶晶振KX251系列時鐘晶體振蕩器非常適用于鐘表電子,KX2513G0032.768000,32.768k晶振

KX201	1.82.53.3	2.0 x 1.6 x 0.75	陶瓷縫	20~50	KX201	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 2.0x1.6mm, 32.768kHz CMOS 晶體振蕩器
KX251	1.82.53.3	2.5 x 2.0 x 0.9	陶瓷縫	20~50	KX251	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 2.5x2.0mm, 32.768kHz CMOS SMD晶體振蕩器
KX31Q	3.32.51.8	3.2 x 2.5	陶瓷縫	20~50	KXQ	32.768KHZ	<1	4	1.8/2.5/3.3V、3.2x2.5mm、超低電流、32.768KHz、汽車級CMOS晶體振蕩器
KX321	1.82.53.3	3.2 x 2.5 x 1.0	陶瓷縫	20~50	KX321	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 3.2x2.5mm, 32.768kHz CMOS 晶體振蕩器
KX501	1.82.53.3	5.0 x 3.2 x 1.2	陶瓷縫	20~50	KX501	32.768KHZ	<1	4	1.8V/2.5V/3.3V, 5.0x3.2mm, 32.768kHz CMOS 晶體振蕩器
