KDS晶振貼片盤裝尺寸對照表
來源：http://m.omrb.cn 作者：泰河電子 2016年07月21
其實晶振的外包裝與晶振本身是一樣的,也會有尺寸及規格.編帶的貨會有編帶的尺寸,長寬高,與料盤的大小尺寸.一定會有很多客戶定購日本進口晶振,來給自己的產品做出口作用.對晶振不太了解的,都會不知道晶振是用什么包裝的,泰河電子的市場經營部給大家整了一份KDS完整的外包裝尺寸詳解資料.以供大家參考.

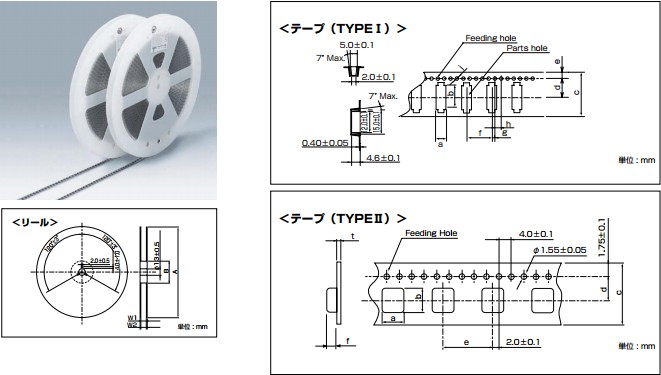

外包裝圖
■KDS晶振包裝標準樣式
.JPG)
MHz石英晶振／溫度傳感內置晶振
■有源晶振外包裝標準樣式
壓控溫補晶振及溫補晶振（VC-TCXO/TCXO）
普通有源晶振（SPXO）/單壓控振蕩器（VCXO）
.jpg)
我司泰河電子已正式開通微信公眾號,歡迎搜索關注“taihekj”?；蛘邟叽a關注。我們將每天都與官網同步，發送晶振原包裝圖片及相關技術資料。
外包裝圖
■KDS晶振包裝標準樣式
| TYPEⅠ | a | b | c | d | e | f | g | h | j | A | B | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SMD-49 |
5.0 ±0.1 |
12.0 ±0.1 |
24.0 ±0.3 |
11.5 ±0.1 |
1.75 ±0.10 |
8.0 ±0.1 |
2.0 ±0.1 |
4.0 ±0.1 |
1.5 +0.1/?0 |
φ330 ±2 |
φ80 ±1 |
25.5 ±1.0 |
29.5 ±1.0 |
| TYPEⅡ | a | b | c | d | e | f | t | A | B | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| DSX530GA/GK |
3.6 ±0.1 |
5.45 ±0.10 |
12.0 ±0.2 |
5.50 ±0.10 |
8.0 ±0.1 |
1.55 ±0.10 |
0.30 ±0.05 |
φ180 +0/-3 |
φ60 +1.0/-0 |
13.0 +0.3 |
15.4 ±1.0 |
|
DSX321G DSX320G/GE |
2.8 ±0.1 |
3.5 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.0 ±0.1 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX321SH |
2.7 ±0.1 |
3.4 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.4 ±0.1 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60.0 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX221G |
2.3 ±0.1 |
2.8 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
4.0 ±0.1 |
1.0 ±0.1 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX221SH |
2.25 ±0.1 |
2.7 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.8 ±0.05 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60.0 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX211SH |
1.9 ±0.1 |
2.3 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.65 ±0.10 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60.0 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX211G |
1.85 ±0.10 |
2.25 ±0.10 |
8.0 ±0.2 |
3.5 ±0.05 |
4.0 ±0.1 |
0.95 ±0.10 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX210GE |
2.0 ±0.1 |
2.4 ±0.1 |
8.0 ±0.2 |
3.5 ±0.05 |
4.0 ±0.1 |
0.95 ±0.1 |
0.25 ±0.05 |
φ180 ＋0/-3 |
φ60 ＋1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSX1612S |
1.45 ±0.15 |
1.85 ±0.15 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.45 ±0.15 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSR221STH |
2.25 ±0.1 |
2.7 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.15 ±0.10 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSR211ATH |
1.85 ±0.1 |
2.25 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.95 ±0.10 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSR1612ATH |
1.40 ±0.1 |
1.80 ±0.1 |
0.70 ±0.1 |
3.50 ±0.05 |
4.0 ±0.1 |
0.70 ±0.10 |
0.20 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| kHz貼片晶振 | |||||||||||
| DMX-26S |
4.1 ±0.1 |
8.5 ±0.1 |
16.0 ±0.3 |
7.5 ±0.1 |
8.0 ±0.1 |
2.7 ±0.1 |
0.30 ±0.05 |
φ330 ±2 |
φ80 ±1 |
17.5 ±1.0 |
21.5 ±1.0 |
|
DST310S DST311S |
1.70 ±0.05 |
3.40 ±0.05 |
12.0 ±0.2 |
5.50 ±0.05 |
4.0 ±0.1 |
0.95 ±0.05 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
13.0 ±0.3 |
15.5 ±1.0 |
| DST210A |
1.45 ±0.1 |
2.3 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.65 ±0.10 |
0.20 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DST1610A |
1.28 ±0.05 |
1.79 ±0.05 |
8.0 ±0.3/-0.1 |
3.50 ±0.05 |
4.0 ±0.1 |
0.65 ±0.10 |
0.20 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DST1610AL |
1.35 ±0.05 |
1.85 ±0.05 |
8.0 ±0.3/-0.1 |
3.50 ±0.05 |
4.0 ±0.1 |
0.4 ±0.10 |
0.20 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
■有源晶振外包裝標準樣式
壓控溫補晶振及溫補晶振（VC-TCXO/TCXO）
| TYPE | a | b | c | d | e | f | t | A | B | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSA/DSB535SC DSA/DSB535SD DSA/DSB535SG |
3.5 ±0.1 |
5.4 ±0.1 |
12.0 ±0.2 |
5.50 ±0.1 |
8.0 ±0.1 |
1.7 ±0.1 |
0.30 ±0.05 |
φ330 ±2 |
φ100 ±1 |
13.5 ±1.0 |
18.5 max. |
|
DSA/DSB321SDN DSB321SDNB/SLB DSK321STA/STD |
2.8 ±0.1 |
3.5 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.5 ±0.1 |
0.25 ±0.05 |
φ180 ＋0/-3 |
φ60 ＋1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
|
DSA/DSB222MAA DSA/DSB222MAB DSA/DSB221SJ DSA/DSB221SDN DSB221SDNB/SLB |
2.3 ±0.1 |
2.8 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.15 ±0.1 |
0.30 ±0.05 |
φ180 ＋0/-3 |
φ60 ＋1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
|
DSA/DSB211SDN DSB211SDNB/SLB |
1.95 ±0.10 |
2.35 ±0.10 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.85 ±0.1 |
0.20 ±0.05 |
φ180 ＋0/-3 |
φ60 ＋1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
|
DSA/DSB1612SDN DSB1612SDNB |
1.45 ±0.10 |
1.85 ±0.10 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.8 ±0.1 |
0.20 ±0.05 |
φ180 ＋0/-3 |
φ60 ＋1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| TYPE | a | b | c | d | e | f | t | A | B | W1 | W2 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
DSO751SR DSO751SBM/SBN/SVN DSO753SK/SJ/SD DSS753SVC/SVD DSV753SV/SB/SK/SJ/SD |
5.5 ±0.1 |
7.9 ±0.1 |
16.0 ±0.3 |
7.5 ±0.1 |
8.0 ±0.1 |
2.4 ±0.1 |
0.30 ±0.05 |
φ254 ±2 |
φ80 ±0.5 |
17.0 ±0.5 |
21.0 ±1.0 |
|
DSO753HV/HK/HJ DSV753HV/HK/HJ/CK/CJ |
5.5 ±0.1 |
7.9 ±0.1 |
16.0 ±0.3 |
7.5 ±0.1 |
8.0 ±0.1 |
2.4 ±0.1 |
0.30 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
17.0 ±0.5 |
21.0 ±1.0 |
|
DSO531SR DSO531SB/SBN/SVN DSO533SK/SJ DSV531SV/SB DSV532SV/SB |
3.6 ±0.1 |
5.45 ±0.1 |
12.0 ±0.2 |
5.50 ±0.05 |
8.0 ±0.1 |
1.55 ±0.10 |
0.30 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
13.0 ±0.3 |
15.4 ±1.0 |
|
DSO323SK/SJ/SD DSO321SW/SR/SH/SN DSO321SBM/SBN/SVN DSV323SV/SK/SJ/SD DSV321SV/SR DSK324SR |
2.8 ±0.1 |
3.5 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.5 ±0.1 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
|
DSO221SW/SR/SH/SN/SHF DSO221SBM/SBN/SVN DSO223SK/SJ/SD DSV221SV/SR |
2.3 ±0.1 |
2.8 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
1.15 ±0.10 |
0.30 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
|
DSO213AW DSO211AH/AR/AN/AB DSV211AV/211AR |
1.85 ±0.10 |
2.25 ±0.10 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.95 ±0.10 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
| DSO1612AR |
1.4 ±0.1 |
1.8 ±0.1 |
8.0 ±0.2 |
3.50 ±0.05 |
4.0 ±0.1 |
0.7 ±0.1 |
0.25 ±0.05 |
φ180 +0/-3 |
φ60 +1/-0 |
9.0 ±0.3 |
11.4 ±1.0 |
我司泰河電子已正式開通微信公眾號,歡迎搜索關注“taihekj”?；蛘邟叽a關注。我們將每天都與官網同步，發送晶振原包裝圖片及相關技術資料。
