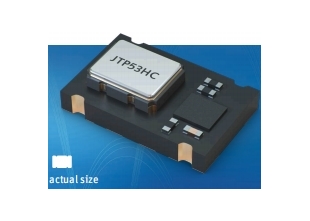

Jauch Crystal|O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF

產品型號：93893400
晶振頻率：38.4MHz
晶振尺寸：5.0*3.2*1.2mm
產品應用： Jauch晶振,JTP53HCV進口晶振,O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF晶振,石英晶體振蕩器,壓控溫補晶振,5032封裝晶振,SMD晶體,頻率38.4MHz,電壓3.3V,頻率穩定性0.5ppm,工作溫度-40~105°C,高穩定性晶振,耐高溫晶振,抗...

Jauch Crystal|O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF,Jauch晶振,JTP53HCV進口晶振,O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF晶振,石英晶體振蕩器,壓控溫補晶振,5032封裝晶振,SMD晶體,頻率38.4MHz,電壓3.3V,頻率穩定性0.5ppm,工作溫度-40~105°C,高穩定性晶振,耐高溫晶振,抗沖擊晶振,工業應用晶振,環繞視圖攝像頭晶振,測試與測量設備晶振,服務器晶振.

Jauch Crystal|O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF特點：
-精密溫度補償晶體振蕩器，5.0 x 3.2 mm
-頻率穩定性可達±50 PPB
-工作溫度范圍-40℃~ +105℃
-JTP53HCV與頻率調諧選項
-3層兼容版本參考JTS53HC(V)

Jauch Crystal|O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF規格表

TYPE		JTP53HC/JTP53HCV（HCMOS output）
frequency range		38.4MHz
frequency stability	at +25°℃	± 0.20 ppm max.
	after 2x reflow (*2)	± 0.5 ppm max.
	temperature (*3)	±0.50ppm
	supply voltage (*4)	± 0.1 ppm max. (at VDC ± 5%)
	load change (*5)	± 0.1 ppm max. (at nom load ± 5%)
	aging first year (*6)	± 1.0 ppm max. (at +25 °C)
	aging per day (*7)	± 10.0 ppb max.
	short term (ADEV)	0.2 ppb max. / 0.1 ppb typ. with τ = 1 sec
current consumption max.		10 mA max.
supply voltage VDC		3.3 V (±5%)
temperature	operating	-40℃-+105℃
	operable	-40℃-+105℃
	storage	-55℃-+105℃
output	rise/fall time max.	8ns (10% <-> 90% of VDC)
	nominal load	15 pF
	low level max.	0.4V
	high level min.	VDC - 0.4V
start-up time max.		3.0ms
VC frequ. tuning range JTP53HCV		examples in table 2 (ask for more options)
VC frequ. tuning voltage JTP53HCV		examples in table 3 (ask for more options)

Jauch Crystal|O 38.40-JTP53HCV-E-P-3.3-1515-1015-LF尺寸圖

Jauch晶振原廠編碼	制造商	型號	頻率	頻率容差	負載電容	工作溫度
Q 0.032768-JTX410-7-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-20-T1-LF	Jauch晶振	JTX410	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-9-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX410-7-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-10-T1-LF	Jauch晶振	JTX410	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-9-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX410-8-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	8pF	-40°C ~ 85°C
Q 0.032768-JTX410-7-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX410-12.5-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX410-10-30-T1-LF	Jauch晶振	JTX410	32.768kHz	±30ppm	10pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-50K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-20-T1-HMR-60K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-7-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 85°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 105°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-9-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	9pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-20-T2-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-7-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	7pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-20-T3-HMR-70K-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	12.5pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX310-6-20-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX210-9-20-T1-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	9pF	-40°C ~ 85°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-6-20-T3-HMR-LF	Jauch晶振	JTX310	32.768kHz	±20ppm	6pF	-40°C ~ 125°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX310-12.5-10-T1-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 85°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX210-12.5-20-T2-LF	Jauch晶振	JTX210	32.768kHz	±20ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 0.032768-JTX310-12.5-10-T2-HMR-LF	Jauch晶振	JTX310	32.768kHz	±10ppm	12.5pF	-40°C ~ 105°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	-20°C ~ 70°C
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS21-12-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS21-8-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS21-9-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF	-20°C ~ 70°C
Q 27.12-JXS21-10-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	10pF	-20°C ~ 70°C
Q 27.12-JXS21-12-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	12pF	-20°C ~ 70°C
Q 27.12-JXS21-8-10/10-FU-WA-LF	Jauch晶振	JXS21-WA	27.12MHz	±10ppm	8pF	-20°C ~ 70°C

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請?zhí)崆昂蜆I(yè)務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://m.omrb.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
