首頁歐美晶振IQD Crystal|LFXTAL078424BULK

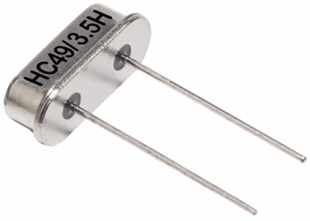

    IQD Crystal|LFXTAL078424BULK

  • 產品型號：85598890
  • 晶振頻率：16MHz
  • 晶振尺寸：
  • 產品應用： IQD晶振,HC49/3.5H無源晶振,LFXTAL078424BULK晶振,歐美晶振,兩腳插件晶振,進口晶振,石英晶體諧振器,頻率16MHz,負載20pF,頻率容差30ppm,工作溫度-10~70°C,高穩定性晶振,高性能晶振,低電阻晶振,物聯網晶振,音頻系統晶振...

IQD Crystal|LFXTAL078424BULK,IQD晶振,HC49/3.5H無源晶振,LFXTAL078424BULK晶振,歐美晶振,兩腳插件晶振,進口晶振,石英晶體諧振器,頻率16MHz,負載20pF,頻率容差30ppm,工作溫度-10~70°C,高穩定性晶振,高性能晶振,低電阻晶振,物聯網晶振,音頻系統晶振,智能家居晶振,隨身聽晶振.
IQD Crystal|LFXTAL078424BULK特點：
-工業標準鉛封裝
-電阻焊接，在惰性氣體中密封，引線上的玻璃與金屬密封

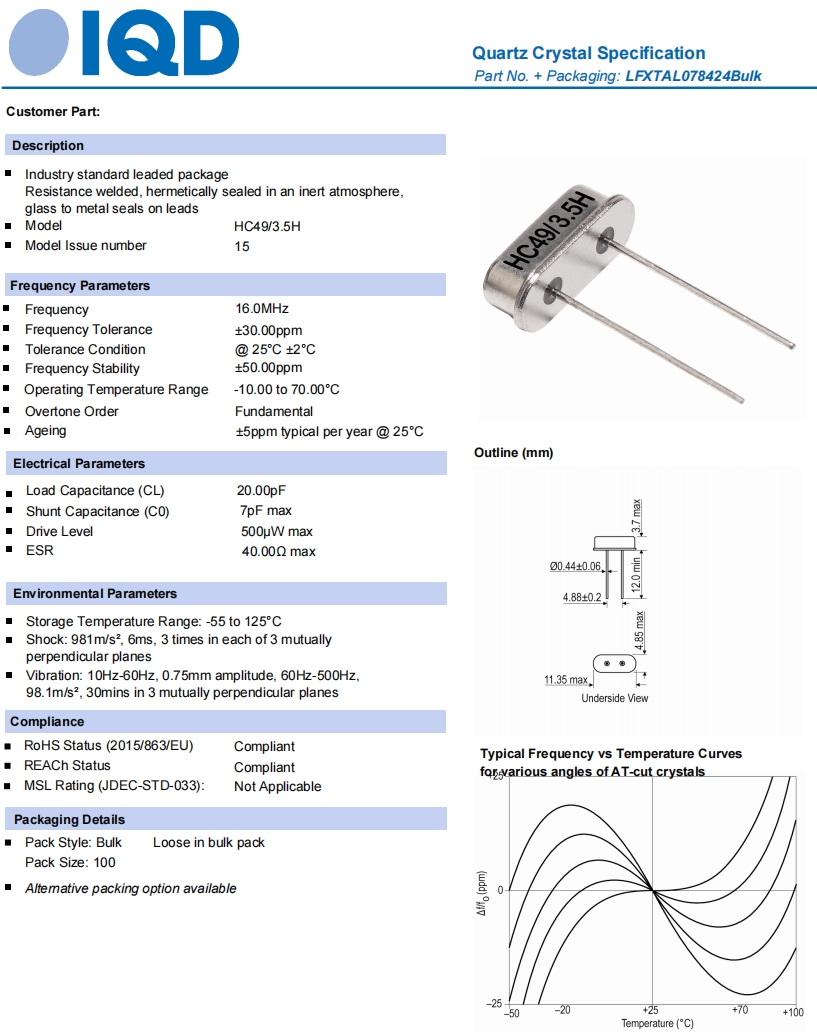

IQD Crystal|LFXTAL078424BULK規格表

Model Product
HC49/3.5H
frequency 16MHz
Frequency Tolerance ±30.00ppm
Tolerance Condition
@ 25°C±2°C
Frequency Stability
 ±50.00ppm
operating temperature range -10 to +70°C
Ageing
±5ppm typical per year@25°C
Load  Capacitance 20pF
Shunt  Capacitance 7pF max
Drive Level 500µW max
ESR 40Ω max
Storage Temperature Range
-55 to 125°C

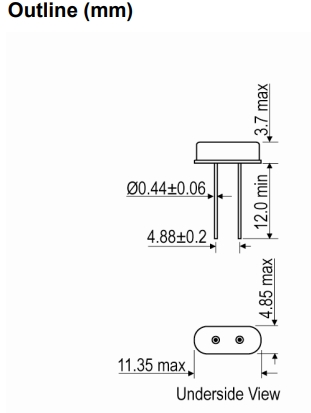

IQD Crystal|LFXTAL078424BULK尺寸圖

Mfr Part  Series Frequency Frequency Tolerance Load Capacitance Operating Temperature
LFXTAL003000 85SMX 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL069395RL3K CFPX-218 16.384 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL009678 CFPX-217 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL050789REEL IQXC-25 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL055299REEL CFPX-180 25 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL053099REEL CFPX-180 27.12 MHz ±10ppm 10pF -20°C ~ 70°C
LFXTAL055663REEL CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL026392REEL 12SMX-B 16 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL011301REEL HC49/4HSMX 8 MHz ±30ppm 30pF -10°C ~ 60°C
LFXTAL029370REEL HC49/4HSMX 16 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL016788REEL HC49/4HSMX 6 MHz ±30ppm 30pF -10°C ~ 60°C
LFXTAL002995BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL002997BULK WATCH 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL002996BULK WATCH 32.768 kHz ±15ppm 12.5pF -40°C ~ 85°C
LFXTAL025159REEL CFPX-56 32.768 kHz ±20ppm 12.5pF -40°C ~ 85°C
LFXTAL003181REEL HC49/4HSMX 20 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL003166REEL HC49/4HSMX 10 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL029914REEL HC49/4HSMX 8 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL003151REEL HC49/4HSMX 8 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL003237REEL HC49/4HSMX 16 MHz ±30ppm 16pF -10°C ~ 60°C
LFXTAL014219BULK WATCH 32.768 kHz ±20ppm 6pF -40°C ~ 85°C
LFXTAL069494REEL IQXC-42 25 MHz ±15ppm 10pF -40°C ~ 85°C
LFXTAL069383REEL CFPX-218 24 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL035264REEL CFPX-180 16 MHz ±50ppm 16pF -10°C ~ 60°C
LFXTAL069944REEL CFPX-180 12 MHz ±20ppm 15pF -40°C ~ 85°C
LFXTAL035268REEL CFPX-180 25 MHz ±50ppm 16pF -10°C ~ 60°C
LFXTAL056140REEL IQXC-180 AUTO 24 MHz ±50ppm 8pF -40°C ~ 125°C
LFXTAL069526REEL IQXC-26 32 MHz ±15ppm 8pF -20°C ~ 70°C
LFXTAL084885 IQXC-217 32.768 kHz ±20ppm 6pF -
LFXTAL036075BULK HC49/4H 27.12 MHz ±30ppm 10pF -10°C ~ 60°C
LFXTAL027945BULK HC49/4H 16 MHz ±30ppm 22pF -10°C ~ 60°C
LFXTAL071268REEL CFPX-218 AUTO 16 MHz ±10ppm 10pF -40°C ~ 125°C
LFXTAL061627REEL CFPX-104 8 MHz ±20ppm 16pF -40°C ~ 85°C
LFXTAL055901REEL CFPX-104 8 MHz ±20ppm 18pF -20°C ~ 70°C
LFXTAL059158REEL CFPX-104 8 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL062558REEL IQXC-25 32.768 kHz ±10ppm 9pF -40°C ~ 85°C
LFXTAL026384REEL 12SMX-B 12 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL026394REEL 12SMX-B 20 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL056516REEL 12SMX-B 8 MHz ±30ppm 12pF -20°C ~ 70°C
LFXTAL026380REEL 12SMX-B 8 MHz ±30ppm 16pF -20°C ~ 70°C
LFXTAL055663BULK CFPX-104 8 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL003033BULK HC49 1.8432 MHz ±20ppm 30pF -10°C ~ 60°C
LFXTAL020423REEL HC49/4HSMX 8 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL024940REEL HC49/4HSMX 4 MHz ±30ppm 18pF -20°C ~ 70°C
LFXTAL026900REEL HC49/4HSMX 6 MHz ±20ppm 16pF -10°C ~ 60°C
LFXTAL030798REEL HC49/4HSMX 3.6864 MHz ±30ppm 16pF -40°C ~ 85°C
LFXTAL082071RL3K CFPX-180 16 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL082069RL3K CFPX-180 12 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL058637RL3K CFPX-180 25 MHz ±30ppm 12pF -40°C ~ 85°C
LFXTAL059627REEL IQXC-42 38.4 MHz ±15ppm 10pF -40°C ~ 85°C
LFXTAL082135CUTT IQXC-42 48 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL063334REEL CFPX-218 25 MHz ±20ppm 10pF -40°C ~ 85°C
LFXTAL055474REEL CFPX-180 25 MHz ±50ppm 16pF -40°C ~ 85°C
LFXTAL059648REEL CFPX-180 40 MHz ±20ppm 18pF -40°C ~ 85°C
LFXTAL072604REEL CFPX-180 25 MHz ±10ppm 8pF -40°C ~ 85°C
LFXTAL069882REEL CFPX-180 12 MHz ±30ppm 10pF -40°C ~ 125°C
LFXTAL070065REEL CFPX-180 24 MHz ±10ppm 9pF -40°C ~ 85°C
LFXTAL055293REEL CFPX-180 14.7456 MHz ±50ppm 18pF -40°C ~ 85°C
LFXTAL009650REEL CFPX-180 16 MHz ±10ppm 16pF -40°C ~ 85°C
