首頁歐美晶振IQD Crystal|LFXTAL030819REEL

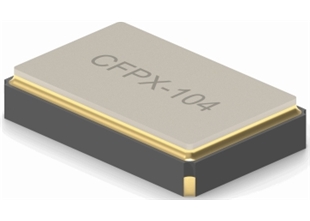

IQD Crystal|LFXTAL030819REEL

產品型號：98797991
晶振頻率：16MHz
晶振尺寸：5.0*3.2*1.2mm
產品應用： 歐美進口晶振,IQD晶振,CFPX-104無源晶振,LFXTAL030819REEL晶振,石英諧振器,四腳貼片晶振,5032mm晶振,頻率16MHz,負載18pF,頻率穩定性50ppm,工作溫度-10~60°C,高品質晶振,抗沖擊晶振,抗振動晶振,智能手機晶振,筆記本電...

IQD Crystal|LFXTAL030819REEL,歐美進口晶振,IQD晶振,CFPX-104無源晶振,LFXTAL030819REEL晶振,石英諧振器,四腳貼片晶振,5032mm晶振,頻率16MHz,負載18pF,頻率穩定性50ppm,工作溫度-10~60°C,高品質晶振,抗沖擊晶振,抗振動晶振,智能手機晶振,筆記本電腦晶振,室內路由器晶振,電視機頂盒晶振.

IQD Crystal|LFXTAL030819REEL特點：
-標準的5x3.2mm貼片晶體與四個襯墊
-陶瓷包裝與接縫密封的金屬蓋密封
-請參閱我們的IQXC-49以獲得雙pad替代方案

IQD Crystal|LFXTAL030819REEL規格表

Model		Product
		CFPX-104
frequency		16 MHz
Frequency Tolerance		±50.00ppm
Tolerance Condition		@ 25°C
operating temperature range		-10 to +60°C
Frequency Stability		±50.00ppm
Ageing		±3ppm per year max
Load Capacitance		18pF
Shunt Capacitance		7pF max
Drive Level		100µW max
ESR		50Ω max
Storage Temperature Range		-55 to 125°C

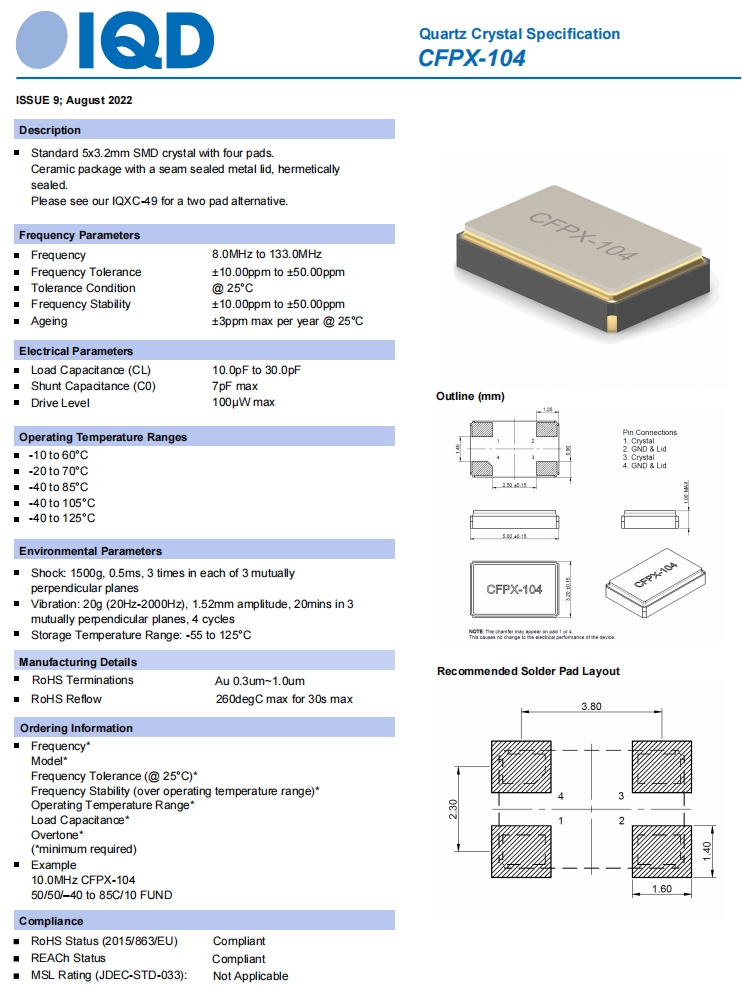

IQD Crystal|LFXTAL030819REEL尺寸圖

Mfr Part	Series	Frequency	Frequency Tolerance	Load Capacitance	Operating Temperature
LFXTAL003000	85SMX	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL069395RL3K	CFPX-218	16.384 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL009678	CFPX-217	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL050789REEL	IQXC-25	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL055299REEL	CFPX-180	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL053099REEL	CFPX-180	27.12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL055663REEL	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL026392REEL	12SMX-B	16 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL011301REEL	HC49/4HSMX	8 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL029370REEL	HC49/4HSMX	16 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL016788REEL	HC49/4HSMX	6 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL002995BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002997BULK	WATCH	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL002996BULK	WATCH	32.768 kHz	±15ppm	12.5pF	-40°C ~ 85°C
LFXTAL025159REEL	CFPX-56	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL003181REEL	HC49/4HSMX	20 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003166REEL	HC49/4HSMX	10 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL029914REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL003151REEL	HC49/4HSMX	8 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003237REEL	HC49/4HSMX	16 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL014219BULK	WATCH	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
LFXTAL069494REEL	IQXC-42	25 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL069383REEL	CFPX-218	24 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL035264REEL	CFPX-180	16 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL069944REEL	CFPX-180	12 MHz	±20ppm	15pF	-40°C ~ 85°C
LFXTAL035268REEL	CFPX-180	25 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL056140REEL	IQXC-180 AUTO	24 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL069526REEL	IQXC-26	32 MHz	±15ppm	8pF	-20°C ~ 70°C
LFXTAL084885	IQXC-217	32.768 kHz	±20ppm	6pF	-
LFXTAL036075BULK	HC49/4H	27.12 MHz	±30ppm	10pF	-10°C ~ 60°C
LFXTAL027945BULK	HC49/4H	16 MHz	±30ppm	22pF	-10°C ~ 60°C
LFXTAL071268REEL	CFPX-218 AUTO	16 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL061627REEL	CFPX-104	8 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055901REEL	CFPX-104	8 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL059158REEL	CFPX-104	8 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL062558REEL	IQXC-25	32.768 kHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL026384REEL	12SMX-B	12 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL026394REEL	12SMX-B	20 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL056516REEL	12SMX-B	8 MHz	±30ppm	12pF	-20°C ~ 70°C
LFXTAL026380REEL	12SMX-B	8 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL055663BULK	CFPX-104	8 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL003033BULK	HC49	1.8432 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL020423REEL	HC49/4HSMX	8 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL024940REEL	HC49/4HSMX	4 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL026900REEL	HC49/4HSMX	6 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL030798REEL	HC49/4HSMX	3.6864 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL082071RL3K	CFPX-180	16 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL082069RL3K	CFPX-180	12 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL058637RL3K	CFPX-180	25 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL059627REEL	IQXC-42	38.4 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082135CUTT	IQXC-42	48 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL063334REEL	CFPX-218	25 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL055474REEL	CFPX-180	25 MHz	±50ppm	16pF	-40°C ~ 85°C
LFXTAL059648REEL	CFPX-180	40 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL072604REEL	CFPX-180	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069882REEL	CFPX-180	12 MHz	±30ppm	10pF	-40°C ~ 125°C
LFXTAL070065REEL	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL055293REEL	CFPX-180	14.7456 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL009650REEL	CFPX-180	16 MHz	±10ppm	16pF	-40°C ~ 85°C
LFXTAL055295REEL	CFPX-180	12 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL082076REEL	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL057997REEL	CFPX-180	16 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL056346REEL	CFPX-180	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL057623REEL	IQXC-180 AUTO	24 MHz	±30ppm	8pF	-40°C ~ 85°C
LFXTAL071744REEL	IQXC-180 AUTO	16 MHz	±30ppm	8pF	-40°C ~ 85°C
LFXTAL083138RL3K	CFPX-180	8 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL073664REEL	IQXC-180 AUTO	12 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL069528REEL	IQXC-26	48 MHz	±15ppm	8pF	-20°C ~ 70°C
LFXTAL081609CUTT	IQXC-26	25 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL069527REEL	IQXC-26	40 MHz	±15ppm	8pF	-20°C ~ 70°C
LFXTAL024944BULK	HC49/4H	16 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL030819REEL	CFPX-104	16 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059530REEL	CFPX-104	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL061633REEL	CFPX-104	13.56 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL055999REEL	CFPX-104	12 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL033075REEL	CFPX-104	25 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL059532REEL	CFPX-104	25 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL056556REEL	CFPX-104	12.5 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL059528REEL	CFPX-104	16.384 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL050518REEL	CFPX-104	12 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL036900BULK	HC49/4H	4 MHz	±10ppm	30pF	-40°C ~ 85°C
LFXTAL003320BULK	HC49	24 MHz	±20ppm	Series	-10°C ~ 60°C
LFXTAL071259REEL	IQXC-42 AUTO	25 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL061486REEL	CFPX-104	8.192 MHz	±30ppm	10pF	-40°C ~ 85°C
LFXTAL026388REEL	12SMX-B	14.7456 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL072351REEL	12SMX AUTO	6 MHz	±50ppm	18pF	-40°C ~ 125°C
LFXTAL072352REEL	12SMX AUTO	8 MHz	±50ppm	18pF	-40°C ~ 125°C
LFXTAL059461REEL	IQXC-25	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
LFXTAL011164BULK	HC49	3.072 MHz	±20ppm	20pF	-10°C ~ 60°C
LFXTAL036356REEL	HC49/4HSMX	12 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL058149RL3K	CFPX-180	24 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL083409RL3K	CFPX-180	26 MHz	±10ppm	12pF	-40°C ~ 105°C
LFXTAL078781RL3K	CFPX-180	16 MHz	±30ppm	12pF	-40°C ~ 125°C
LFXTAL083407RL3K	CFPX-180	24 MHz	±20ppm	12pF	-40°C ~ 105°C
LFXTAL036401REEL	CFPX-104	12 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL071266REEL	IQXC-42 AUTO	48 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL066198REEL	IQXC-90	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
LFXTAL085880	CFPX-180	25 MHz	±20ppm	8pF	-40°C ~ 125°C
LFXTAL085874	CFPX-180	20 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085878	CFPX-180	24 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085860	CFPX-180	12 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085887	CFPX-180	32 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL009709	CFPX-217	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
LFXTAL085881	CFPX-180	25 MHz	±20ppm	12pF	-40°C ~ 125°C
LFXTAL085871	CFPX-180	16 MHz	±20ppm	8pF	-40°C ~ 125°C
LFXTAL085845	IQXC-42	25 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085842	IQXC-42	16 MHz	±10ppm	8pF	-40°C ~ 125°C
LFXTAL085857	IQXC-42	40 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL084882	IQXC-217	32.768 kHz	±20ppm	12.5pF	-
LFXTAL084884	IQXC-217	32.768 kHz	±20ppm	7pF	-
LFXTAL084883	IQXC-217	32.768 kHz	±20ppm	9pF	-
LFXTAL034654REEL	HC49/4HSMX	4 MHz	±20ppm	18pF	-20°C ~ 70°C
LFXTAL028392REEL	HC49/4HSMX	4.9152 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL011300REEL	HC49/4HSMX	4 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL017145REEL	HC49/4HSMX	10 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL017146REEL	HC49/4HSMX	20 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL051755REEL	HC49/4HSMX	18.432 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL033580REEL	HC49/4HSMX	12 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL033575REEL	HC49/4HSMX	7.3728 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL020131REEL	HC49/4HSMX	20 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL015055REEL	HC49/4HSMX	16 MHz	±30ppm	20pF	-10°C ~ 60°C
LFXTAL003058REEL	HC49/4HSMX	3.579545 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL015023REEL	HC49/4HSMX	18.432 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003260REEL	HC49/4HSMX	3.6864 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL016178	85SMX	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
LFXTAL003210REEL	HC49/4HSMX	12 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL010595REEL	HC49/4HSMX	25 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL003519REEL	HC49/4HSMX	11.0592 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL035293REEL	HC49/4HSMX	12 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL028430REEL	HC49/4HSMX	3.2768 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL003071REEL	HC49/4HSMX	4 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL018153REEL	HC49/4HSMX	4.9152 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL026908REEL	HC49/4HSMX	14.7456 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL036034REEL	HC49/4HSMX	16 MHz	±30ppm	16pF	-40°C ~ 85°C
LFXTAL026902REEL	HC49/4HSMX	8.192 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL003334REEL	HC49/4HSMX	7.3728 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL026911REEL	HC49/4HSMX	18.432 MHz	±20ppm	16pF	-10°C ~ 60°C
LFXTAL054555REEL	HC49/4HSMX	25 MHz	±20ppm	20pF	-40°C ~ 85°C
LFXTAL009706	CFPX-217	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
LFXTAL054236	CFPX-217	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C
LFXTAL082887RL3K	IQXC-42	16 MHz	±10ppm	10pF	-40°C ~ 105°C
LFXTAL085851	IQXC-42	32 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL069493REEL	IQXC-42	24 MHz	±15ppm	10pF	-40°C ~ 85°C
LFXTAL082129CUTT	IQXC-42	32 MHz	±10ppm	8pF	-40°C ~ 85°C
LFXTAL073170REEL	IQXC-42	32 MHz	±10ppm	10pF	-40°C ~ 85°C
LFXTAL085841	IQXC-42	20 MHz	±15ppm	10pF	-40°C ~ 125°C
LFXTAL085844	IQXC-42	24 MHz	±20ppm	10pF	-40°C ~ 125°C
LFXTAL085849	IQXC-42	27.12 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL069405REEL	CFPX-218	27 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL069392REEL	CFPX-218	16 MHz	±20ppm	10pF	-40°C ~ 85°C
LFXTAL059611RL3K	CFPX-180	13.56 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL054208RL3K	CFPX-180	12 MHz	±10ppm	10pF	-20°C ~ 70°C
LFXTAL035265REEL	CFPX-180	20 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL068297REEL	CFPX-218	16 MHz	±10ppm	8pF	-20°C ~ 75°C
LFXTAL070868REEL	CFPX-180	12 MHz	±10ppm	18pF	-40°C ~ 85°C
LFXTAL055951REEL	CFPX-180	16 MHz	±30ppm	18pF	-40°C ~ 85°C
LFXTAL035266REEL	CFPX-180	24 MHz	±50ppm	16pF	-10°C ~ 60°C
LFXTAL063321REEL	CFPX-180	25 MHz	±50ppm	18pF	-40°C ~ 85°C
LFXTAL059643REEL	CFPX-180	26 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL059815REEL	CFPX-180	27.12 MHz	±50ppm	10pF	-40°C ~ 85°C
LFXTAL053866REEL	CFPX-180	48 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL058124REEL	CFPX-180	24 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL051068REEL	CFPX-180	25 MHz	±50ppm	9pF	-20°C ~ 70°C
LFXTAL055962REEL	CFPX-180	30 MHz	±10ppm	12pF	-10°C ~ 60°C
LFXTAL071177REEL	CFPX-180	24 MHz	±10ppm	9pF	-40°C ~ 85°C
LFXTAL083408RL3K	CFPX-180	25 MHz	±20ppm	12pF	-40°C ~ 105°C
LFXTAL083388RL3K	CFPX-180	12 MHz	±20ppm	12pF	-40°C ~ 105°C
LFXTAL083387RL3K	CFPX-180	10 MHz	±20ppm	12pF	-40°C ~ 105°C
LFXTAL071774REEL	IQXC-180 AUTO	12 MHz	±50ppm	8pF	-40°C ~ 85°C
LFXTAL071758REEL	IQXC-180 AUTO	25 MHz	±30ppm	8pF	-40°C ~ 85°C
LFXTAL071747REEL	IQXC-180 AUTO	16.384 MHz	±30ppm	8pF	-40°C ~ 85°C
LFXTAL071750REEL	IQXC-180 AUTO	20 MHz	±30ppm	8pF	-40°C ~ 85°C
LFXTAL053426REEL	IQXC-180 AUTO	16 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL055998REEL	IQXC-180 AUTO	20 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL071785REEL	IQXC-180 AUTO	25 MHz	±50ppm	8pF	-40°C ~ 125°C
LFXTAL066834	CFPX-217	32.768 kHz	±10ppm	12.5pF	-40°C ~ 85°C
LFXTAL071270REEL	CFPX-218 AUTO	25 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL069277REEL	CFPX-104	8 MHz	±20ppm	20pF	-40°C ~ 85°C
LFXTAL059531REEL	CFPX-104	24.576 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL033645REEL	CFPX-104	40 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL056583REEL	CFPX-104	10 MHz	±30ppm	12pF	-40°C ~ 85°C
LFXTAL061642REEL	CFPX-104	25 MHz	±20ppm	16pF	-40°C ~ 85°C
LFXTAL032817REEL	CFPX-104	24 MHz	±50ppm	18pF	-10°C ~ 60°C
LFXTAL072402REEL	CFPX-104	10 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL059523REEL	CFPX-104	12.288 MHz	±20ppm	18pF	-40°C ~ 85°C
LFXTAL071255REEL	IQXC-42 AUTO	16 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL071262REEL	IQXC-42 AUTO	32 MHz	±10ppm	10pF	-40°C ~ 125°C
LFXTAL026382REEL	12SMX-B	11.0592 MHz	±30ppm	16pF	-20°C ~ 70°C
LFXTAL065253REEL	IQXC-90	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C
LFXTAL051643REEL	IQXC-25	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C
LFXTAL066431REEL	IQXC-90	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C
LFXTAL003523BULK	HC49/4H	11.0592 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003185BULK	HC49/4H	20 MHz	±30ppm	12pF	-20°C ~ 70°C
LFXTAL024901BULK	HC49/4H	25 MHz	±30ppm	22pF	-10°C ~ 60°C
LFXTAL003102BULK	HC49/4H	4.433619 MHz	±30ppm	20pF	-10°C ~ 60°C
LFXTAL003240BULK	HC49/4H	16 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003074BULK	HC49/4H	4 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL003156BULK	HC49/4H	8 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL024985BULK	HC49/4H	3.2768 MHz	±30ppm	12pF	-10°C ~ 60°C
LFXTAL003132BULK	HC49/4H	6 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL010689REEL	HC49/4HSMX	7.3728 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL012504REEL	HC49/4HSMX	24 MHz	±30ppm	16pF	-10°C ~ 60°C
LFXTAL058383BULK	HC49/4H	16 MHz	±30ppm	20pF	-40°C ~ 85°C
LFXTAL031736BULK	HC49/4H	12 MHz	±30ppm	20pF	-20°C ~ 70°C
LFXTAL003169BULK	HC49/4H	10 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003119BULK	HC49/4H	5 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003286BULK	HC49/4H	12.288 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003063BULK	HC49/4H	3.579545 MHz	±30ppm	20pF	-20°C ~ 70°C
LFXTAL003176BULK	HC49/4H	18.432 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003336BULK	HC49/4H	7.3728 MHz	±15ppm	18pF	-10°C ~ 60°C
LFXTAL003137BULK	HC49/4H	6.144 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003279BULK	HC49/4H	9.8304 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003224BULK	HC49/4H	14.7456 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003115BULK	HC49/4H	4.9152 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003335BULK	HC49/4H	7.3728 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL003215BULK	HC49/4H	12 MHz	±30ppm	30pF	-20°C ~ 70°C
LFXTAL003325BULK	HC49/4H	24 MHz	±30ppm	30pF	-10°C ~ 60°C
LFXTAL027298BULK	HC49/4H	4 MHz	±30ppm	18pF	-20°C ~ 70°C
LFXTAL078424BULK	HC49/3.5H	16 MHz	±30ppm	20pF	-10°C ~ 70°C
LFXTAL078432BULK	HC49/3.5H	16 MHz	±50ppm	20pF	-20°C ~ 70°C
LFXTAL036183BULK	HC49/4H	8 MHz	±15ppm	30pF	-40°C ~ 85°C
LFXTAL063075BULK	HC49/4HSMX	17.2032 MHz	±30ppm	22pF	-40°C ~ 85°C
LFXTAL078431BULK	HC49/3.5H	8 MHz	±30ppm	20pF	-55°C ~ 125°C
LFXTAL003231BULK	HC49	16 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL003134BULK	HC49	6.144 MHz	±20ppm	30pF	-10°C ~ 60°C
LFXTAL003277BULK	HC49	9.8304 MHz	±20ppm	30pF	-10°C ~ 60°C

1.技術支持 2.客服咨詢
全方位技術指導,專業的技術支持讓您感受專業的銷售團隊,耐心為您解答任
到前所未有的后顧無憂. 　　何疑問.讓您的消費得到保障。
3.質量保證，誠信為上　　 4.提升業績,降低成本
我司以"科技為動力,以質量求生存."為理念. 　為您的產品量身訂制,免費取樣,
　　　　　　為您做到低成本,高效率.
工作時間
1，我公司早上上班時間為8：30——12：00。下午上班時間為1：30——5：30。歡迎隨時咨詢我們，業務員手機都是24小時開機的哦！
2，珠三角地區的客戶統一發信豐快遞。如您有指定的快遞公司，請?zhí)崆昂蜆I(yè)務員溝通。廣東省外的客戶統一發安全便捷快速的順豐快遞.

　深圳市泰河電子有限公司
　代理:EPSON,KDS,CITIZEN,SEIKO
　電話:0755-27872782
　手機:13824306246
　郵箱:taiheth@163.com
　Q Q:794113422
　地址:深圳市寶安區40區33號工業城6樓
　網址：http://m.omrb.cn
溫馨提示:泰河電子已正式開通微信公眾號,大家可以關注訂閱我司的微信公眾號,每天都會更新新的資料,及進口晶振原包裝圖.與官網同步,將可以第一時間與大家溝通!歡迎掃碼關注!
